Q12 Series LED Indicator

Q12 Series Panel mount LED indicator with 8 mm coloured diffused epoxy lens or 8 mm water clear super bright LEDs. Available in Bright chrome, black chrome or satin grey bezel finish. Prominent, recessed and flush bezel styles. Voltage: 2 VDC – 220 VAC. Terminals: 2.8 x 0.8 solder lug/faston, pins or 200 mm long wires. IP67 sealing option (EN 60529). Supplied with fixing nut and spring washer.

TYPICAL APPLICATIONS

Process Controls
Professional Electrical Appliances
Communications, Radar
Civil engineering vehicles, trucks, diggers, crane
Trains
HVAC, Energy Management
Lifts
Machine Tools

Description

Panel mount LED indicators with 8 mm coloured diffused epoxy lens or 8 mm water clear super bright LEDs.

MAIN FEATURES

Bright chrome, black chrome or satin grey bezel finish.
Prominent, recessed and flush bezel styles.
Voltage: 2 VDC – 220 VAC.

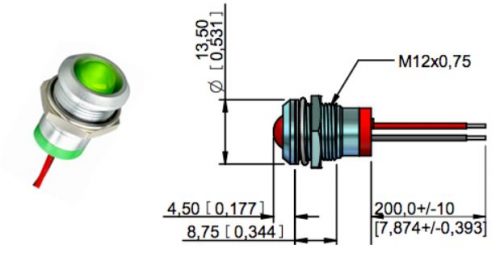

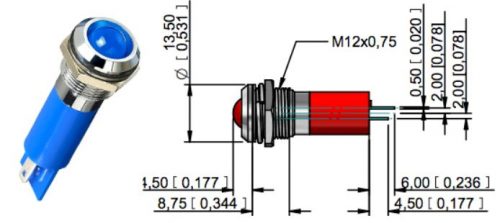

Terminals: 2.8 x 0.8 solder lug/faston, pins or 200 mm long wires.
IP67 sealing option (EN 60529).
Supplied with fixing nut and spring washer.

View all LED Indicators

General Specifications

• Max Reverse Voltage: 5 V
• Viewing Angle: 30–100° *
• Life Expectancy: 100,000 hours
• Temperature Range: –40 to +85 °C *
• Torque: 75 cNm

* Dependant on Model

ENVIRONMENTAL SPECIFICATIONS
• Panel sealed up to IP67 according to EN 60529

MATERIALS
• Plated brass bezel finished in bright chrome, black chrome or satin grey and moulded polycarbonate rear body

Electrical Specifications

• 12 VDC 10.8 to 13.2 VDC 20 mA
• 24 VDC 21.6 to 26.4 VDC 20 mA
• 28 VDC 25.2 to 30.8 VDC 20 mA
• 110 VAC 99 to 121 VAC 6 mA
• 220 VAC 207 to 235 VAC 3 mA
