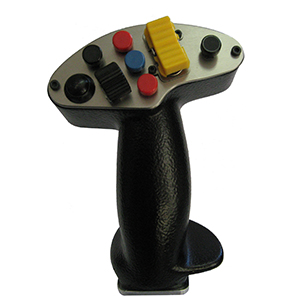

CDJ420 Industrial Joystick with 4-20mA Output

The Control Devices CDJ420 series joystick is available in single and dual axis configurations.

This joystick can be supplied with a battery rail voltage anywhere from 8-30 V dc. The device conditions the voltage and supplies the appropriate voltage levels to both ends of the joystick pot taps, as well as the centre tap. The output from the joystick is 4-20mA. The joystick can be configured to give either 4mA or 12mA as the centre current. Directional switches are also provided if a discrete signal for displacement is required.

  • Rugged mechanical design
  • Industry standard 4-20mA output
  • Optional outputs available (0-24mA)
  • Multiple Ergonomic grips
  • Custom Switch layouts
  • Optional dual output redundancy
  • MOSFET isolated directional switches
  • Internal power regulation

View Handle options here

Description

The Control Devices CDJ420 series industrial joystick with 4-20 mA output is available in single and dual axis configurations.

The CDJ420 Industrial joystick can be supplied with a battery rail voltage anywhere from 8-30 V dc. The device conditions the voltage and supplies the appropriate voltage levels to both ends of the joystick pot taps, as well as the centre tap. The joystick produces 4-20 mA output. The joystick can be configured to give either 4mA or 12mA as the centre current. Directional switches are also provided if a discrete signal for displacement is required.

  • Rugged mechanical design
  • Industry standard 4-20mA output
  • Optional outputs available (0-24mA)
  • Multiple Ergonomic grips
  • Custom Switch layouts
  • Optional dual output redundancy
  • MOSFET isolated directional switches
  • Internal power regulation

View Handle options here

Control Devices was founded in 1997 with a purpose to provide the best possible engineering advice, technical support and product solutions with a view to improve our customer operational performance.

Control Devices has a modern, open plan sales and administration office located in Alexandria, Sydney, very close to Sydney airport. In 2008, we established a manufacturing business to provide custom made cable assemblies, controllers and electronic assemblies for the industrial and defence markets. In 2015, the manufacturing division moved north of Sydney to Gosford on the NSW Central Coast.

Control Devices Engineering has graduate Electronics, Mechanical and Mechatronic Engineers, Technical Support, Mechanical and Electronic assembly experts and support staff that compliments a very busy engineering facility.

The key objective of Control Devices Engineering is to provide a quality product with a cost effective service. To achieve this goal we actively engage our clients in decisions relating to our production processes.

Control Devices Australia has committed to the requirements of an ISO 9001:2015 Quality Assurance System in order to provide customer confidence and as an assurance to ourselves that our service is meeting customer’s expectations. We will continually review our Quality Objectives and communication techniques to ensure continual improvement of our systems.

The Control Devices range of advanced solutions for measurement and control, including high-volume customised joysticks for OEM applications, are designed to fit the specific applications and needs of an ever-growing market.

We are distinguished from other engineering supply companies by:

  • Our broad and deep inventory of quality products
    ● Our diversification across industry sectors, countries and markets
    ● Our customer focus
    ● Our commitment to engineering excellence and innovation

View all Control Devices Products here.

Follow us on Facebook.



Dielectric Strength 2500V
Insulation Resistance 10M Ohm
Shock 30g ±20% All axis IEC 68-2-27
Vibration 10Hz to 150Hz 1g ±3 dB IEC68-2-6
Ingress Protection IP50
Operating Temperature Range -40 + 85 C
Weight Approximately 700gms
Dielectric Strength 2500V
Insulation Resistance 10M Ohm
Supply Voltage +8V to +30V DC
Current Consumption 40mA
Over Current and Over Voltage Protection Yes - TVS Diode
Polarity Protection Yes - Diode
Output type Current
Number of Analogue inputs/Outputs 2
Output Range 4-20mA (Factory set – others available on
request)
Life 5 million operations
Dimension See Drawing
Life 5 Million Operations
