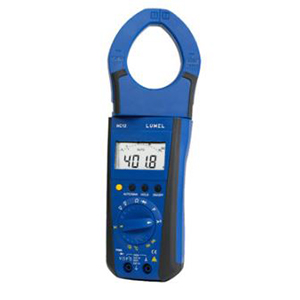

NC11 AC Clamp-on meter 1000A / 400A

NC11 clamp-on meter has been designed to measure AC current and voltage, DC voltage as well as capacitance, circuit continuity, resistance, frequency, duty cycle and temperature.

The innovative product design increases comfort and safety of the user. The unique design of the rotary measuring component (clamps) allows for measurements in places with a different access. The jaws can be opened and closed by using a special lever placed under the meter, which allows the user to keep their arm at a safe distance from the measured parts of the system, thereby the risk of an electric shock.



Description

Lumel NC11 clamp-on meter has been designed to measure AC current and voltage, DC voltage as well as capacitance, circuit continuity, resistance, frequency, duty cycle and temperature. 1000A/400A.

The innovative product design increases comfort and safety of the user. The unique design of the rotary measuring component (clamps) allows for measurements in places with a different access. The jaws can be opened and closed by using a special lever placed under the meter, which allows the user to keep their arm at a safe distance from the measured parts of the system, thereby the risk of an electric shock.

Lumel are the producers of automation devices for measurement, control, transmission and visualisation of various industrial processes. They also provide Services of designing and manufacturing of automation systems.

Since 1954 Lumel brand has been known as a producer of quality measuring devices and high-pressure die-casting all over the world. Their high position in the market has been achieved thanks to continuous development, employees and modern technology in areas of research, design and production. Lumel delivers complex solutions for power and industrial automation sector as well as for automobile, chemical, steel, or HVAC industries

Their objective is to provide comprehensive solutions by designing intelligent systems based on the electronics Lumel manufactures, which are measuring and regulating equipment for industrial, automotive and military applications, as well as through service production of electronics.

View more Lumel products.

Follow us on Facebook

► The diameter of measured cable 50 mm (the meter up to 1000A)
► The diameter of measured cable 40 mm (the meter to 400A)
► Current measurement up to 400 and 1000A AC
► Measuring temperature from 0 to 1300°C (K type thermocouple)
► Illuminated digital display with analogue indicator
► A number of features
● HOLD - stop function currently displayed measured value
● Auto power off

► For low ohm measurement, the lead resistance can be compensated by pressing the REL key
► Automatic and manual mode
► Available measuring function diodes and transistors
► Degree of protection IP20
► An adjustment of the resistance - for low measuring low resistance or can be compensated by pressing the shift button.
